DOOR LEAF STRUCTURE
- rebated system or the DUO non-rebated system
- wooden rail and stile set topped with two flush HDF boards, covered with ECO TOP, HIGH TOP surface, core made of honeycomb-like stabilizing layer

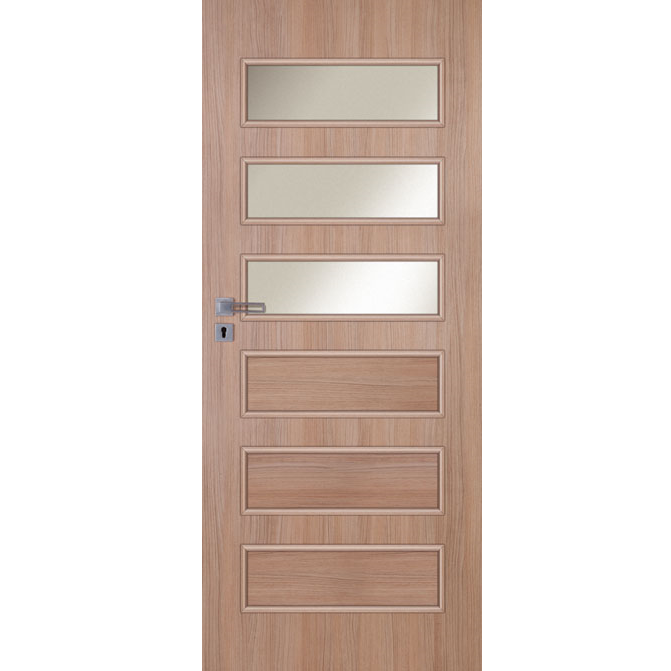

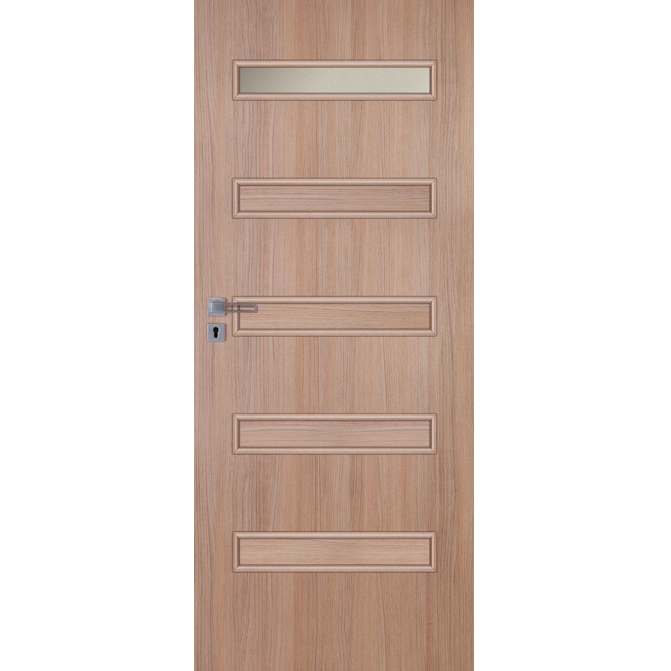

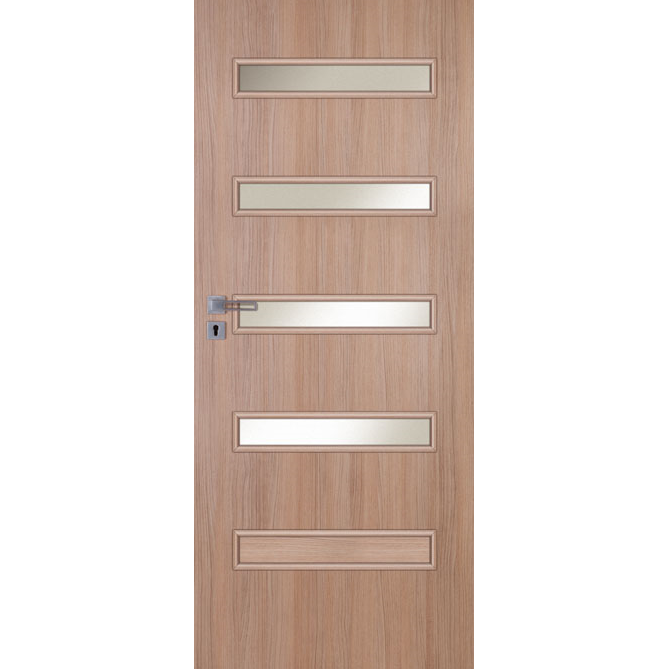

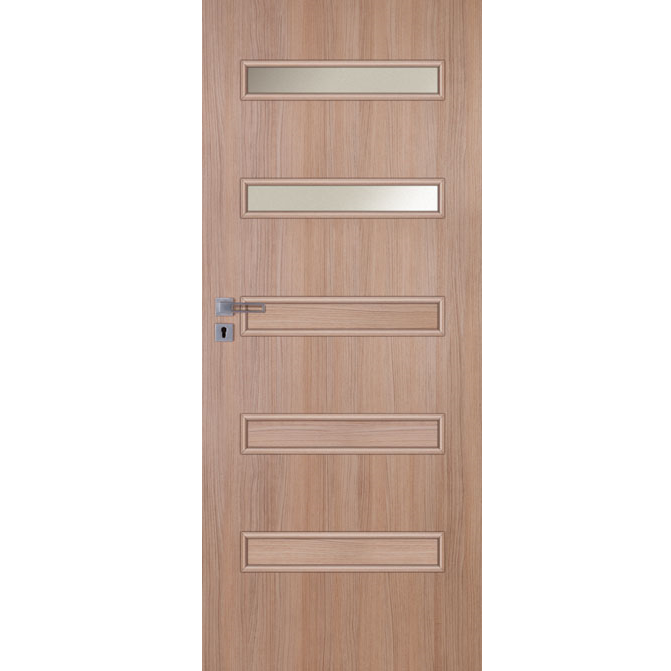

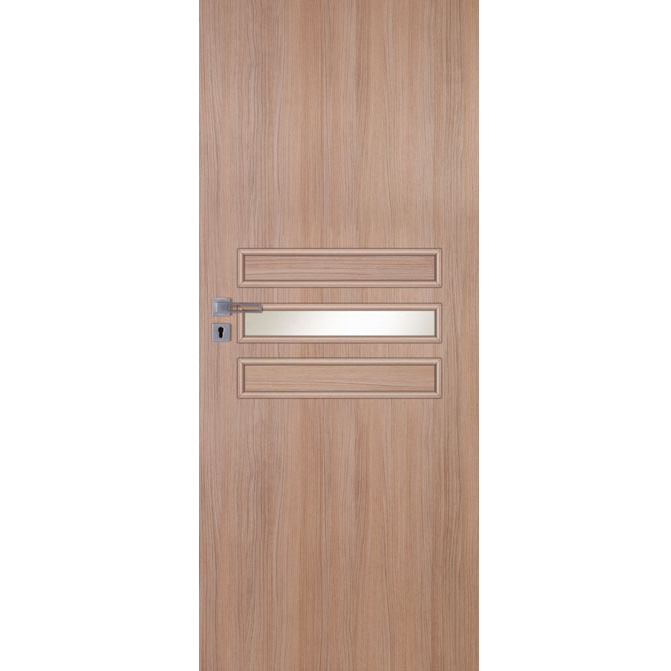

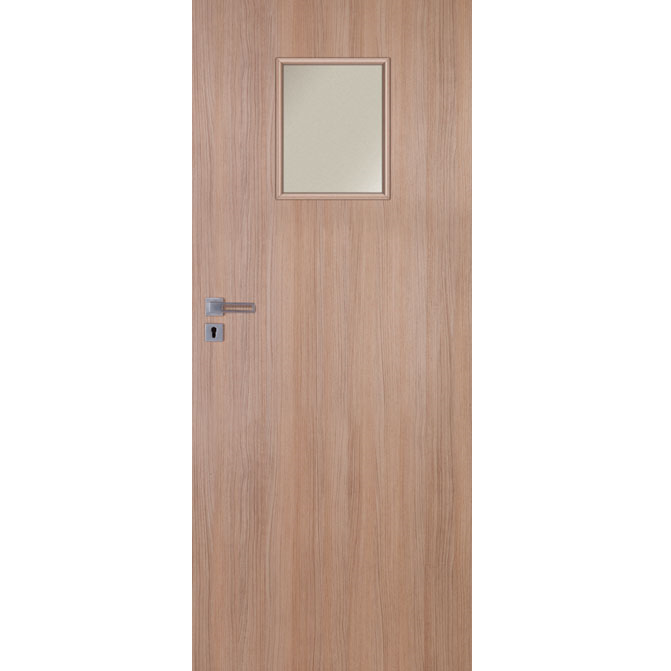

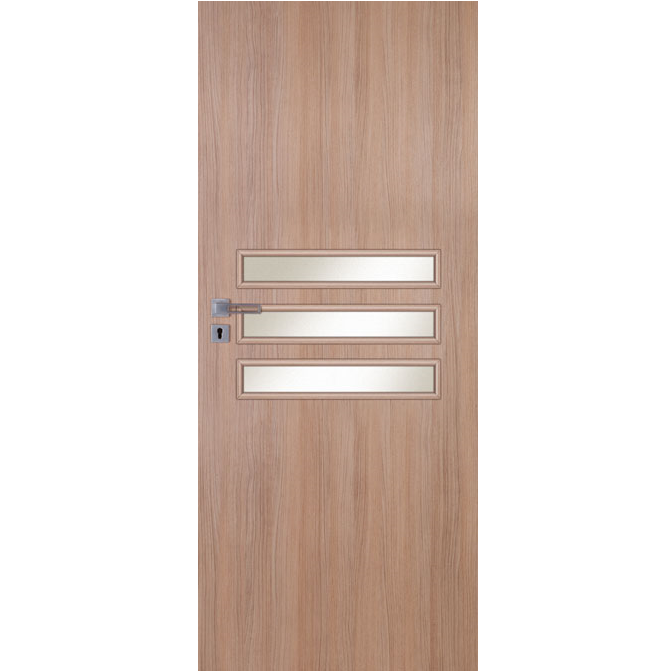

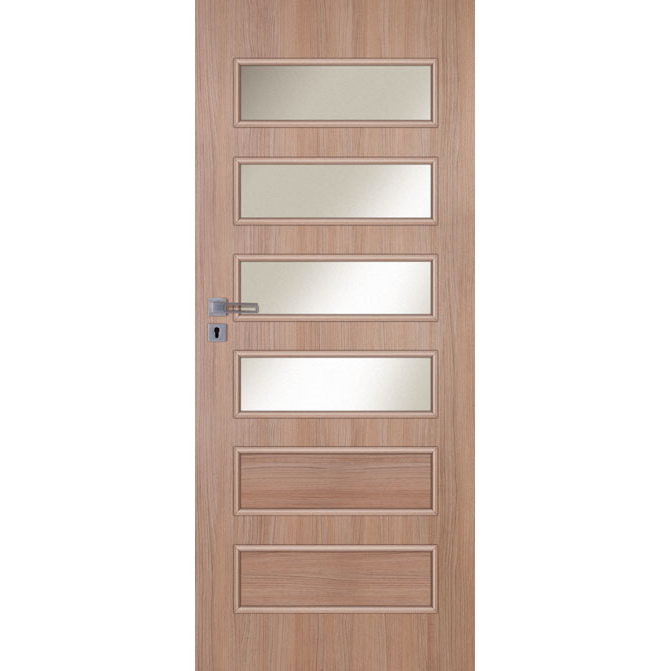

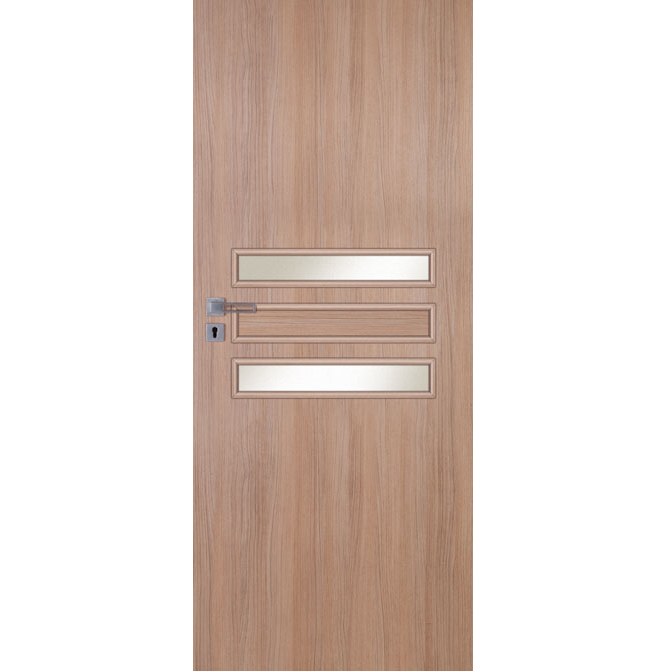

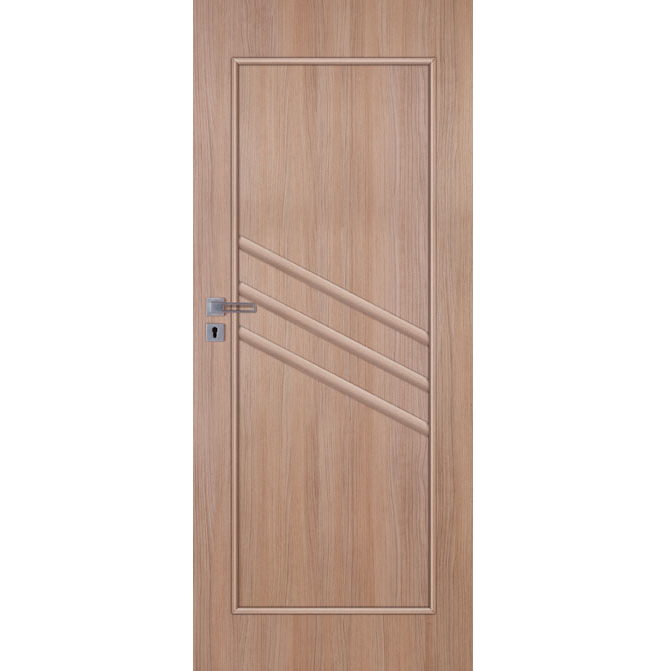

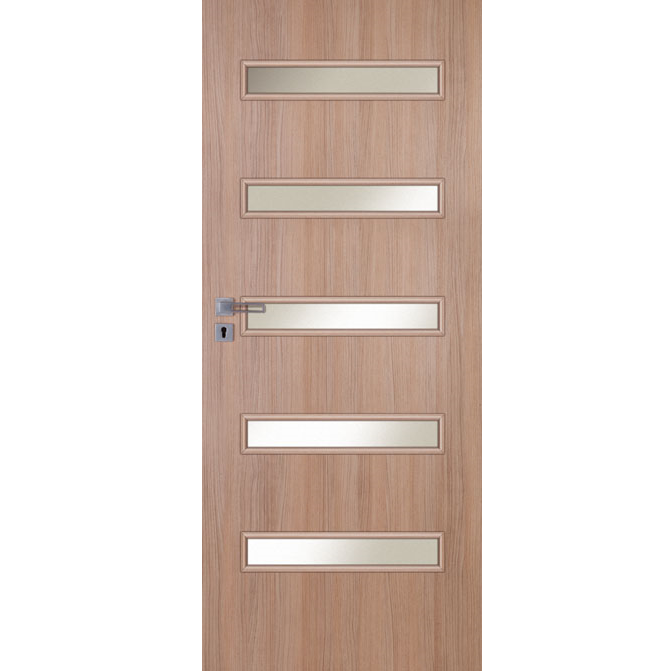

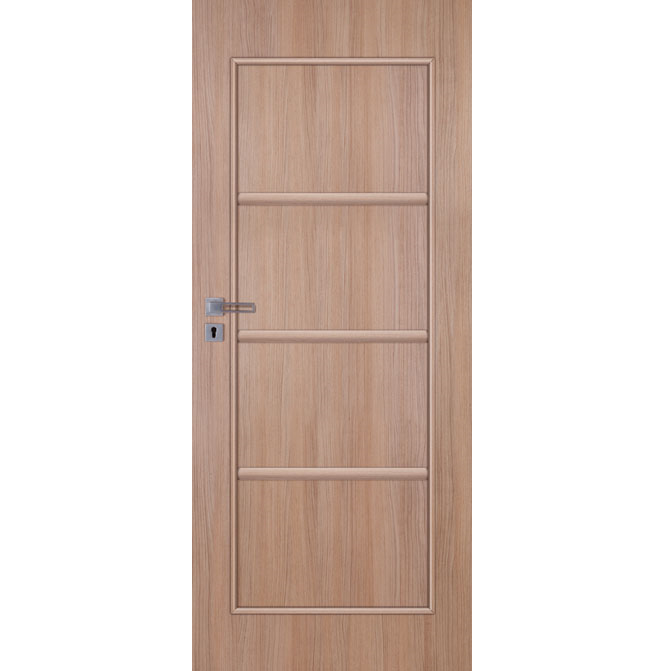

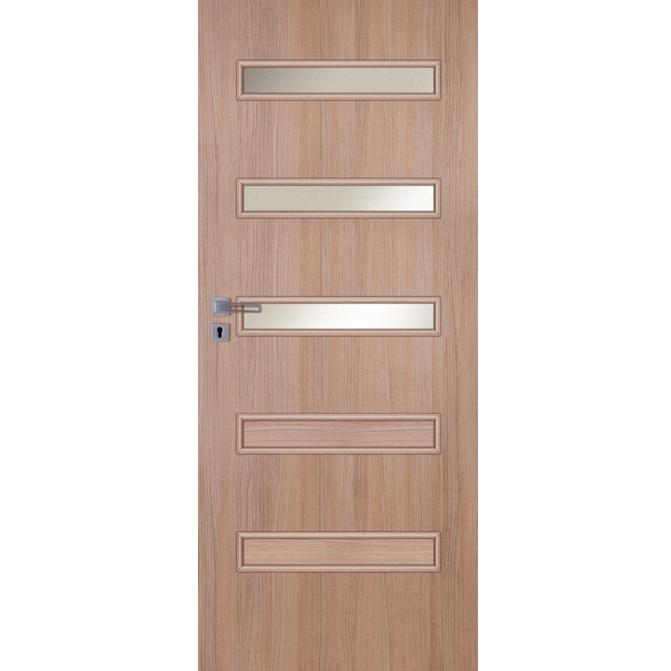

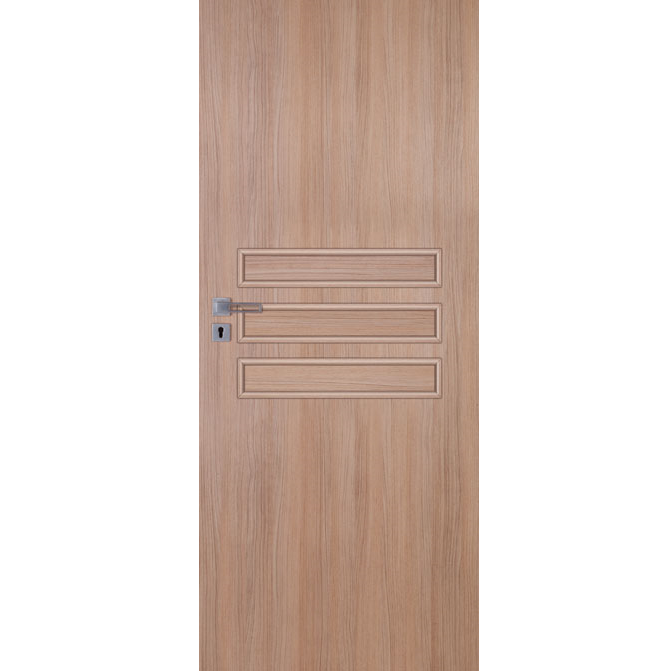

- door leaf: vertical wood grain, panels: vertical wood grain (pattern A, B), panels: horizontal wood grain (pattern C, D, E, F)
GLAZING
- standard: white matt glass, 4 mm thick, for door leaves in the colours of: white, bright aralia, dark aralia, oak, bavaria beech, common walnut, British oak, maple, nut, dark oak, dark acacia, Palermo walnut, Salinas oak, white pine, Scandinavian oak; brown matt glass, 4 mm thick – Chestnut, southern oak, dark ash

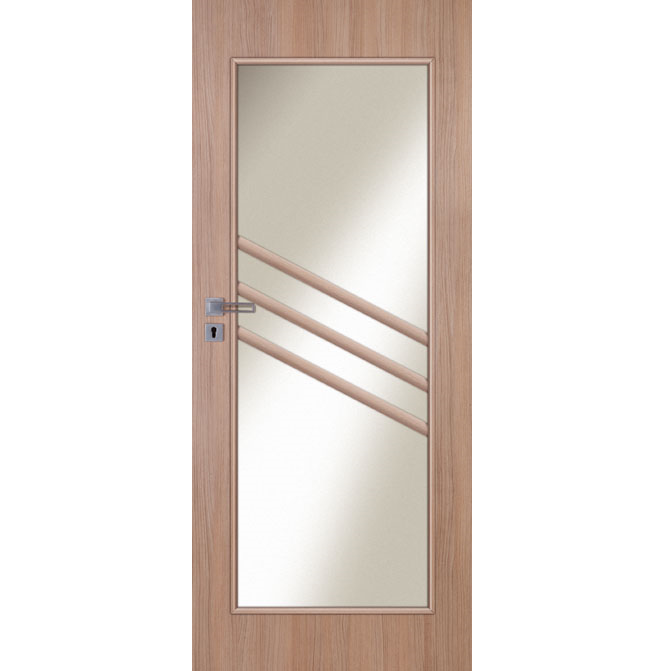

- for safety reasons, we recommend to use tempered glass – VERSION AS4, BS2, 03SD
STANDARD EQUIPMENT
REBATED SYSTEM
- single-point mortise lock, spacing: 72 mm, key-operated (WK), for cylinder (WB) or for
bathroom lock (WC) - hinges: screw-in pivot type (“60”, “70”, “80” – 2 units; “90” – 3 units)
NON-REBATED SYSTEM
- magnetic mortise lock (colour: chrome – satin), key-operated WK, for bathroom lock WC – spacing: 90 mm; for cylinder WB – spacing: 85 mm
- hidden non-rebated hinges (DUO non-rebated system) (“60”, “70”, “80”, “90” – 2 units)
DOOR LEAF DIMENSIONS
- the single leaf type: “60”; “70”; “80”; “90”
- the double leaf type: “60”+”60”; “60”+”70”; “60”+“80”; “60”+“90”; “70”+“70”; “70”+“80”; “70”+“90”; “80”+“80”; “80”+“90”; “90”+“90”
