DOOR LEAF STRUCTURE
- rebated system or the DUO non-rebated system
- wooden rail and stile set topped with two painted flush HDF boards, the core made of honeycomb-like stabilizing layer
GLAZING

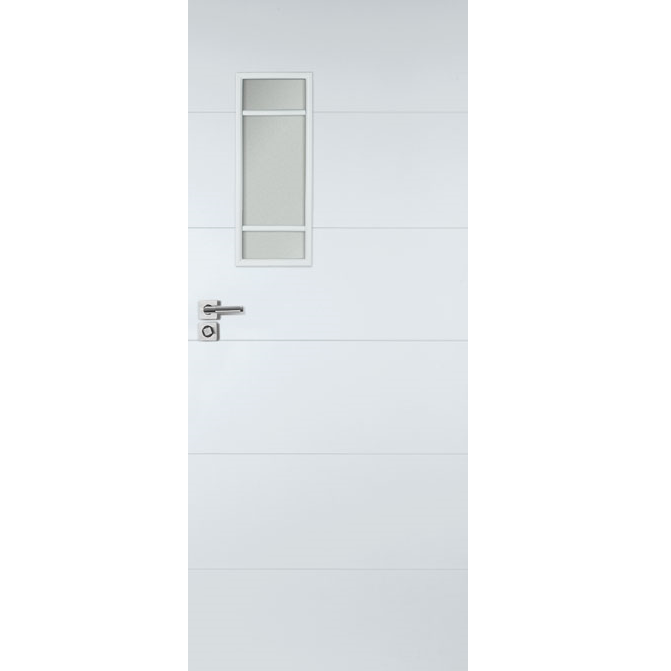

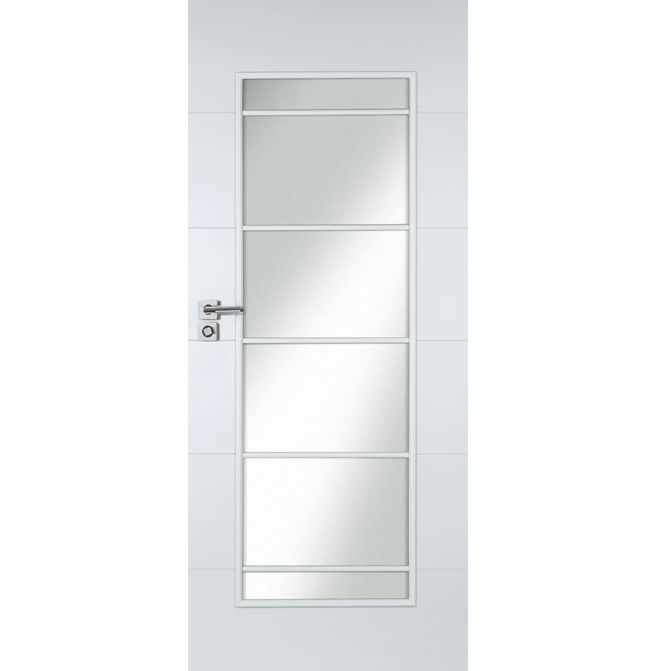

- For safety reasons, we recommend to use tempered glass – SIMPLE VERSION 01, 02
- REBATED SYSTEM: Standard: white matt glass, 4 mm thick
- NON-REBATED SYSTEM: Standard: white matt glass, 4 mm thick
STANDARD EQUIPMENT
REBATED SYSTEM
- single-point mortise lock, spacing: 72 mm, key-operated (WK), for cylinder (WB) or for bathroom lock (WC)
- hinges: screw-in pivot type (“60”, “70”, “80” – 2 units; “90” – 3 units)
NON-REBATED SYSTEM
- magnetic mortise lock (colour: chrome – satin), key-operated WK, for bathroom lock WC
- spacing: 90 mm; for cylinder WB – spacing: 85 mm
- hidden non-rebated hinges (DUO non-rebated system) (“60”, “70”, “80”, “90” – 2 units)
DOOR LEAF DIMENSIONS
- the single leaf type: “60”; “70”; “80”; “90”
- “90” rebated version (non-standard width, passage clearance: 877 mm); dimension on the external side of door frame (fixed – 963 mm, adjustable – 969 mm, DIN adjustable – 921 mm); door leaf dimension in door “90” – 892×2020 mm (ASTOR, GRAF)
- “90” non-rebated version; dimension on the external side of door frame (fixed, adjustable – 986 mm, DIN adjustable – 945 mm); door
- the double Simple leaf type: (“60”+“60”, “60”+“70”, “60”+“80”, “60”+“90”, “70” +“70”, “70”+“80”, “70”+“90”, “80”+“80”, “80”+“90”, “90”+“90”)
